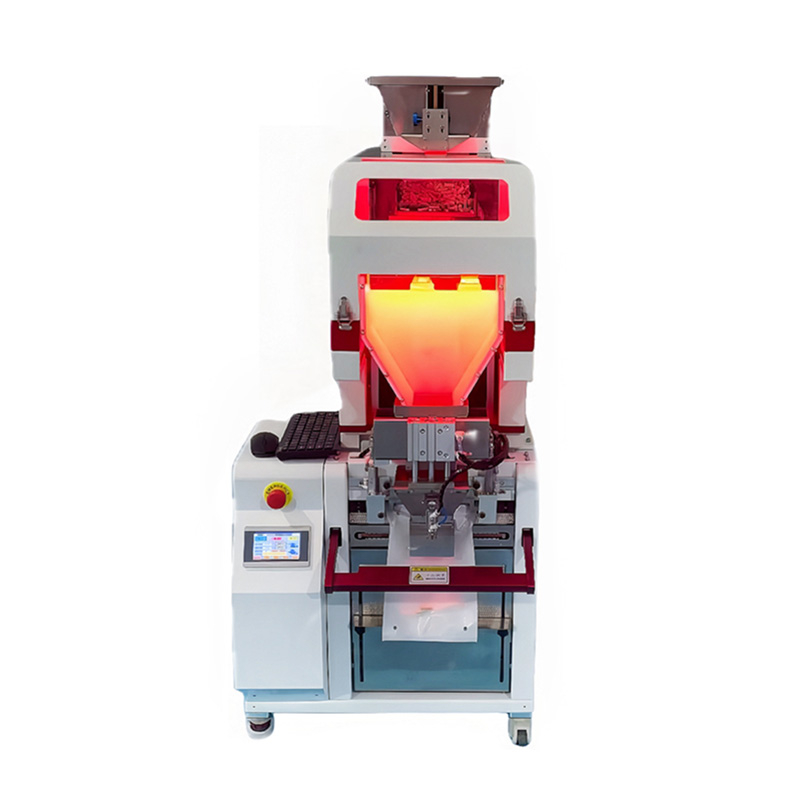

Visual Counting Autobagger
Specially Design for small parts, using CCD visual counting system with precision channel to send parts and dropping down to auto bagging machine, direct sealing when reach preset quantity.
Model | AX-ATB24 |
Applicable material types | Precision hardware, plastic parts, connector, etc. |
Applicable material size | 3-30mm |
Efficiency | 3000-5000pcs/min |
Bag size | Length: 100-380mm Width: 50-240mm |
Counting accuracy | 0.03%, no minus quantity(depends on product) |
Machine size | 850(L)x650(W)x1300(H)mm |
Power supply | Single phase 220V, 50/60HZ, 2.5KW |
Air supply | 0.5-0.6MPA |
1. Compact design with counting and packaging.
2. Intelligently study new projects.

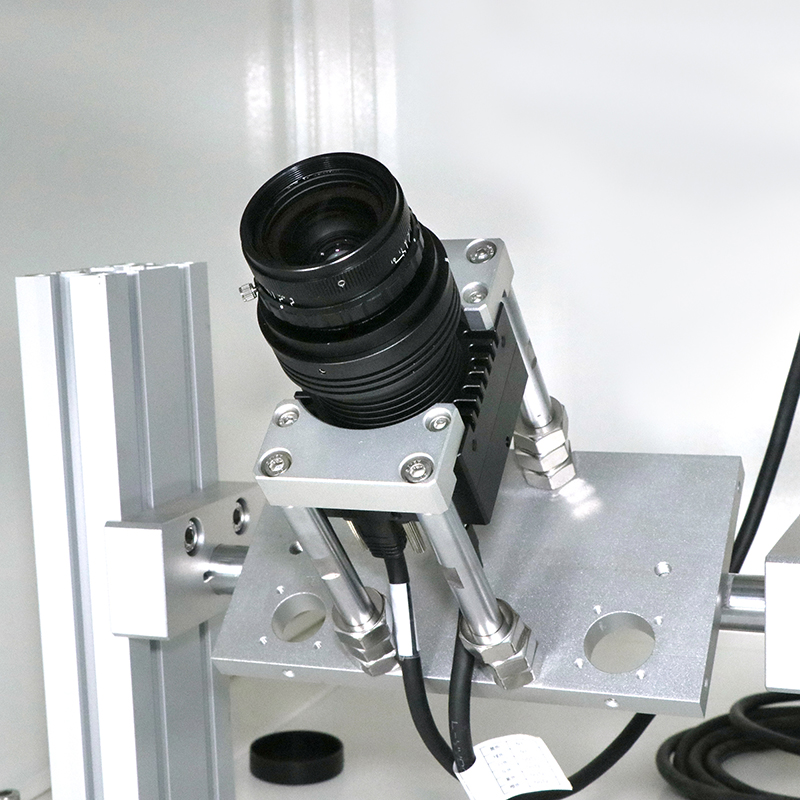

3. Camera counting which make count in higher accuracy than weight method.
4. Has a strong storage capability and easily switch different items.
5. 3000-8000pcs/min counting speed.
6. Connecting with other machines.
7. One machine is suitable for different material products.
8. Package in PE 2sides sealing bag directly.
9. Specially designed for small precision accessories.
