| Quantity: | |
|---|---|
Model | AX-T25 | AX-T35 | AX-T45 | AX-T60 | AX-T80 |
Bag width | 150-250mm | 200-350mm | 200-450mm | 400-600mm | 600-800mm |
Bag length | 120-350mm | 150-450mm | 200-600mm | 200-850mm | 200-1000mm |
Machine size(mm) | 1230(L)x903(W)x932(H) | 1230(L)x1053 (W)x1102(H) | 1400(L)x1183(W)x1142(H) | 1500(L)x1000(W)x1362(H) | 2556(L)x1410(W)x1522(H) |
Packing Material | PE roll film | ||||
Film Thickness | Single thickness 0.05-0.1mm | ||||
Power supply | Single phase 220V,50/60HZ,1.5KW | ||||
Air Supply | 0.5-0.6MPA | ||||

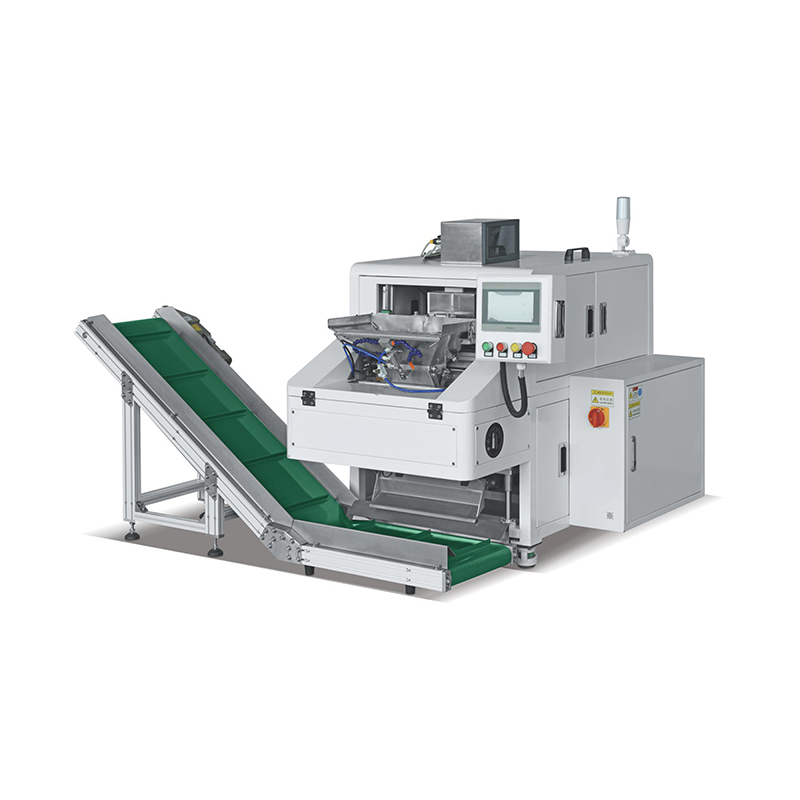

Tubular Film Packaging Machine
1. Impact design: machine size less than 1.2 CBM.
2. Bags option and 150-450 bag widths, with strong versatility.
3. Packing material: film bag thickness (0.04mm-0.10mm)
4. Environment-friendly PE film, the cost is half of the traditional film.
5. Coding printing function: instant labeling, thermal transfer coding.
6 Computer code storage, production parameter recorded.
7. It can be connected with ERP & MES system to update product data in real time.
8. It can be connected with the inspection machine, and the material can be directly packaged to avoid mixed material.
